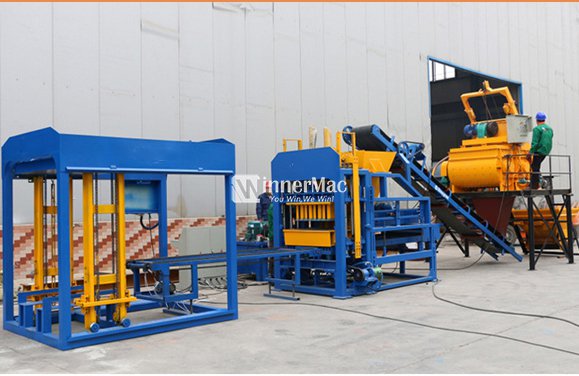

Brick Machine QT4-15

QT4-15C automatic price block press machine vibration system:
Which can effectively expand the vibration area and achive two-fold, substantial progress in product quality and output. And effectively extend the useful life of the mould. Vibration box with hanging structure, can withstand severe vibration without damage and fracture. Eccentric shaft vibration synchronous rotating vertical structure produced by the exciting force, enable the best results of fabric and forming.

1).Full automatic block machine feeding machine system The feeding machine rastellus use combined type, and make it more conveniet when change it, and the feeding part use Push-pull type with back and forth .and make the aggregate will more blance, and assure the concerte blocks hight and weight keep accordance. Use the Continuous rotary type and compulsory feeding system can achieve mixing second time. Feeding speed more quickly.Full automatic free burned block making machine ejection mechanism: This body mainly uses two fuel tanks mounted under the bottom of the rack to control the movements of ejection seat; rack at the top adopts arm-type rigid synchronization mechanism, which may ensure that the mold frame moves smoothly, when demoulding will not damage the surface of molding bricks.

2).Full automatic block machine color surface machine parts The color surface machine crane use hydraulic control system, the color surface hopper connected by crane and rubber spring, will have shock absorption effect, at the same time can prevent rest color material become lump. The material door control the hopper open and close ,will achieve feeding blance.

3).The brick conveyor system of fully automatic brick forming machine The system is equipped with one automatic brick getting-out machine and automatic brick getting-in machine , The brick getting-out machine uses the V-belt to drive brick pallets for reducing the abrasion of pallets. And also brick getting-out machine is equipped with Paint Roller,which could adjust the height of Rolling Brush rack via the screw nut so that the whole process would become more accurate and expeditious.

4).Full automatic free burned block making machine's stacking system The system uses well-known foreign company's advanced electronic control systems and electrical components, with the realization of a rational man-machine dialogue interface. Adopt proximity switches, photoelectric switch control hydrocylinder's start and stop time, shift distance and rotation angle, using high-sensitivity displacement sensor control Stacking upgrade folder to reduce altitude, with a protection function

5). Fully automatic burn-free block machine adopt PLC control system It can set the various actions through adjust the flow, press etc technique parameters by touch screen,, achieve machine-human talking, the control system mainly included three units,
(1) fully automatic batching and mixing control system (2) brick forming machine, pallets transferring control system (3) stacking block machine control system
