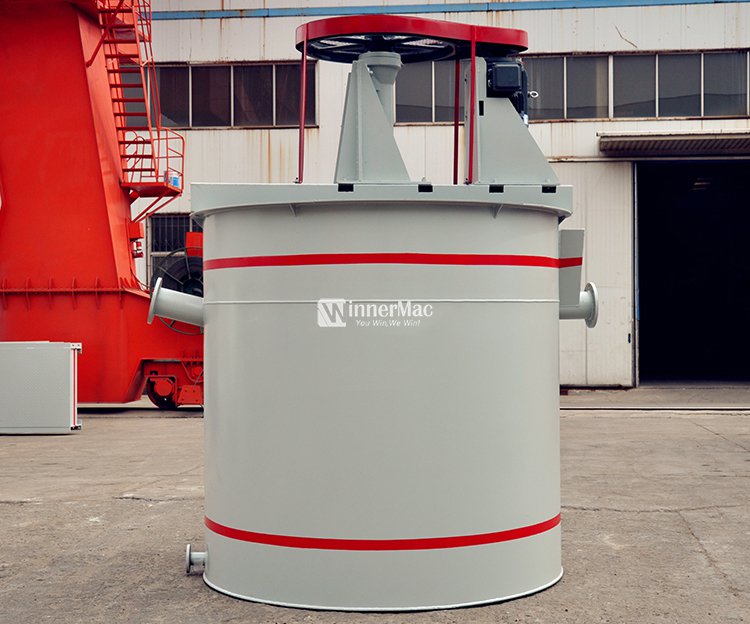

leaching tank

leaching tank


Dual impeller high efficiency agitating tank is applicable to carbon process and rubber chemical process. Its upper and lower layer of impellers are of steel plate encapsulated with rubber,which are connected by means of bolts. With the features like good equilibrium,easy replacement and long service life.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • leaching tank
  • leaching tank
  • leaching tank
  • leaching tank
Cyanide Leaching Tank— Feature Cylinder is covered with Winnermac abrasion resistant and corrosion resistant rubber. The high linear speed of impeller helps increase the agitation capacity of ore pulp. More spot air-filling system.


1.The machine features a reasonable and compact structure, and high transmission efficienty;
2.Twin impeller is used ,which has bigger diameter,lower turning speed,lower agitation power consumption,and lower wear of the carbon;
3.Air is sent to the bottom via pipes , so that it is evenly spared with less bubles; It gives moderates agitation strength, to keep the slurry density and fitness to be basically uniform is the tank, so as to improve leaching ability of the cyandidation and the adsorption intensity.
4.The aeration system and the trasmission system are innovated for the new model of the twin impeller high-effciency leaching agitation tank.

Model

Tank specifications

(mm)

D×L

Effective volume

(m³)

Impelle

Diameter

Planet-cycloid reducer

total

weight

(kg)

Speed

r/min

Diameter

(mm)

Feed tube(mm)

Discharge tube

(mm)

Model

Speed

ratio

Motor power

(kw)

SJ2.0×2.5

2000×2500

6

52

909

2—Φ133×8

2—Φ133×8

XLD2.2-4-29

29

2.2

2144

SJ2.5×3.15

2500×3150

13.14

935

2—Φ133×8

2—Φ133×8

3095

SJ3.0×3.0

3000×3000

18

40.85

1130

2—Φ150

2—Φ150

XLD4-5-35

35

4

4161

SJ3×3.15

3000×3150

18.93

43

1130

2—Φ150

2—Φ150

4323

SJ3.15×3.55

3150×3550

24

43

1260

2—Φ150

2—Φ150

4583

SJ3.5×3.5

3500×3500

30

52

1310

2—Φ150

2—Φ150

XLD5.5-5-29

29

5.5

5025

SJ3.5×4.0

3500×4000

32.7

41

1310

2—Φ150

2—Φ150

5429

SJ3.55×4.0

3550×4000

33.6

43

1310

2—Φ150

2—Φ150

XLD4-5-35

35

4

5825

SJ3.7×4.2

3700×4200

38.4

42

1310

2—Φ150

2—Φ150

XLD4-5-35

43

4

6153

SJ4.0×4.0

4000×4000

38

35

1750

2—Φ159×8

2—Φ159×8

XLD7.5-7-43

43

7.5

7450

SJ4.0×4.5

4000×4500

48

35

1750

2—Φ159×8

2—Φ159×8

XLD7.5-7-43

43

7.5

7569

SJ4.5×5.0

4500×5000

71.57

1750

2—Φ159×8

2—Φ159×8

XLD7.5-7-43

43

7.5

10864

SJ5.0×5.6

5000×5600

98

31

2046

2—Φ159×8

2—Φ159×8

XLD11-8-47

47

11

14291

SJ5.5×6.0

5500×6000

112

2100

2—Φ159×8

2—Φ159×8

47

11

18745

Φ6×6.5

6000×6500

170

24.9

2300

2—Φ168×8

2—Φ168×8

XLD18.5-9-35

31.5

18.5

21006

Φ6.5×7

6500×7000

215

23

2400

2—Φ168×8

2—Φ168×8

XLD18.5-9-43

43

22

25567

Φ7.0×7.5

7000×7500

245.4

21

2400

2—Φ168×8

2—Φ168×8

XLD22-10-47

47

22

30486

SJ7.5×8.0

7500×8000

268.6

21

2900

2—Φ168×8

2—Φ168×8

XLD22-10-47

47

22

34365

SJ8.0×8.5

8000×8500

342

16.4

3200

2—Φ219×8

2—Φ219×8

Y250M-8



30

42468

Φ8.5×9

8500×9000

395

18.5

3300

2—Φ219×8

2—Φ219×8

Y250M-8



30

46623

Φ9.5×10

9500×10000

648

16.6

3750

2—Φ273×8

2—Φ273×8

Y280S-8



37

59786

Φ10.5×11

10500×11000

900

13.28

4400

2—Φ325×8

2—Φ325×8

Y315S-8



55

72647

Φ11.5×12

11500×12000

1190

12.1

4600

2—Φ325×8

2—Φ325×8

Y315M-8



75

95669

Φ12×13

12000×13000

1414

13.4

4600

2—Φ377×8

2—Φ377×8

Y315L1-8



90

120635

Φ13×14

13000×14000

1740

10.7

5200

2—Φ377×8

2—Φ377×8

JR125-8



110

148666




Cyanide Leaching Tank
— Working principle Carbon leaching bank is equipped with other auxiliary devices like carbon screen and carbon pump, etc. Made of steel and covered with rubber, upper impellers and lower impellers are connected with blot which improves balance capacity and service life. Main shaft is divided into two layer and linked by flange and reduces the slinging height. Multiple and disperse air holes can ensure the performance of mixing air and liquid.
