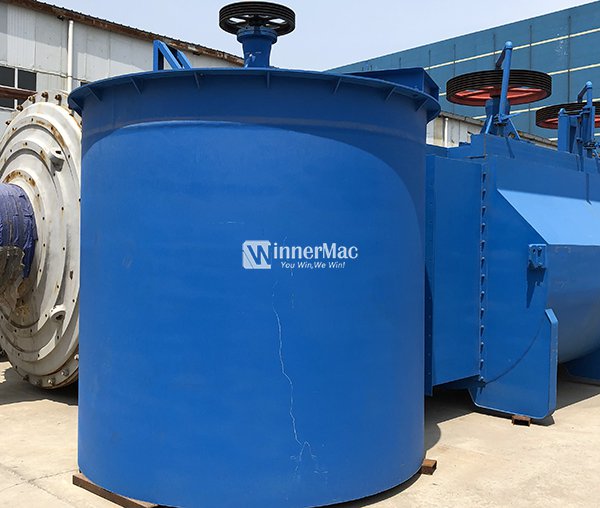

Agitation Tank

Agitator Tank,Mixing tank is from motor v-belts transmission and dynamic impeller rotation, drugs and pulp fully mixing, increase the potion effect reaction time strengthen drug reactions quality necessary equipment, the machine is suitable for selected the mining industry, also used for all kinds of chemical industry agitation.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252

[email protected]

0086 18637192252

[email protected]

0086 18637192252

Agitation Tank Features

Agitation tank is used to mix pulp with chemical, preparing for flotation separation.
The characters of agitation tank:
(1) Impeller diameter's enlarging and linear speed's improving, enhance ability of mixing pulp with chemical.
(2) The impeller pileus shaped, which not only enhances the mixing ability but also circulating ability.
(3) There is an inducer in the tank, and the impeller is in the inducer. The structure not only enhances the mixing ability but also enhances circulating ability.
(4) Pileus impeller produces a downward pressure during running, which can reinforce the ability of suction pulp, then improve cycling effect of pulp and chemical.
(5) There is a jet device under the inducer, which also improves cycling ability after pulp and chemical into inducer.
(6) Pulp and chemical agitate and cycle completely, making pulp mixing pulp with chemical completely, cycles well, it is very good for flotation separation.

Standard Model		XB-500	XB-1000	XB-1500	XB-2000	XB-2500	XB-3000
Effective Volume(m3)		0.124	0.58	2.2	5.46	11.2	19.1
Impeller	Diameter(mm)	150	240	400	550	650	700
Impeller	Speed(r/min)	1000	530	320	230	280	210
Motor	Model	Y100L-4	Y132S-6	132M-6	Y160M-6	180L-6	Y225S-8
Motor	Power(kw)	1.5	3	5.5	7.5	15	18.5
Internal Size of Trough	Diameter(mm)	Φ500	Φ1000	Φ1500	Φ2000	Φ2500	Φ3000
Internal Size of Trough	Height(mm)	750	1000	1500	2000	2500	3000
Dimensions	Length (mm)	670	1130	1750	2380	3028	3610
	Width(mm)	351	1130	1642	2162	2640	3266
	Height(mm)	1286	1491	2186	2846	3543	4326
Weight(t)		0.375	0.685	1.2	1.65	3.462	4.292

Agitator Tank, Mixing tank is mainly used to blend medicament and ore magma ,it’s suitable for blending various kinds of metal and nonmetal ores. Especially it’s applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating, gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.

Agitator Tank,Mixing tank is from motor v-belts transmission and dynamic impeller rotation, drugs and pulp fully mixing, increase the potion effect reaction time strengthen drug reactions quality necessary equipment, the machine is suitable for selected the mining industry, also used for all kinds of chemical industry agitation.

This machine is from motor v-belts transmission and dynamic impeller rotation, drugs and pulp fully mixing, increase the potion effect reaction time strengthen drug reactions quality necessary equipment, the machine is suitable for selected mining, is indispensable processing equipment also used for all kinds of the chemical industry’s bad mixing. Mixing barrel applicable to all kinds of metallic ores, mainly used for flotation before mixing, is fully mixing potions to pulp, it can also be used for other non-metallic minerals agitation. It USES in concentration is not more than 30% (by weight calculation) fixed the granularity of less than 1mm ingredients. Its form is flat bucket radiation circulation spiral impeller mechanical agitation type.

Chemical mixing tank is mainly used to blend medicament and ore slurry ,it’s suitable for blending various kinds of metal and nonmetal ores. Especially it’s applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating, gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.
