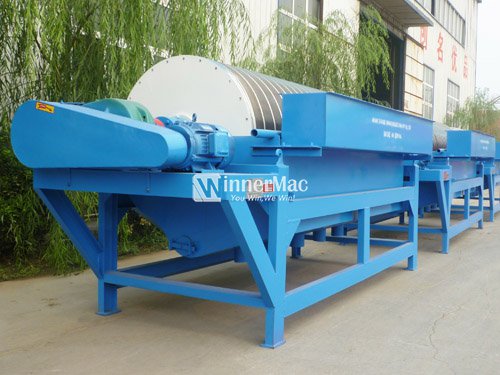

Magnetic Separator is used to separate magnetite. hematite,limontie smaller than 3 mm in wet way.  ball mill is also used to separate iron in coal, nonmetallic ore, construction industry, etc.we can provide magnetic separators of forward tow. semi counter flow and counter flow types according to customers request.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • Magnetic Separator
  • Magnetic Separator
  • Magnetic Separator
  • Magnetic Separator
Main Features of magnetic separator :
1. Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100~600mT
2. The same cylinder can be equipped with three types of tank adapting to different dressing process.
3. Small area taken, good separation for magnetic mineral, reduce the load of next process

model

Drum size

(D*L)mm

Magnetic strength mT

Handling

capacity

Power

kw

Rotary



Speed

r/min

Weight

kg

Medium

value

average

Max

strength

t/h

m³/h

CTB(N.S)-46

400*600

——

130

160

1-30

5

1.1

45

600

CTB(N.S)-66

600*600

——

145

170

5-10

16

1.1

40

750

CTB(N.S)-69

600*900

——

145

170

8-15

24

1.1

40

830

CTB(N.S)-612

600*1200

 ——

145

170

10-20

32

2.2

40

990

CTB(N.S)-618

600*1800

 ——

145

170

15-30

48

2.2

40

1330

CTB(N.S)-712

750*1200

120

155

180

15-30

48

3

35

1500

CTB(N.S)-718

750*1800

120

155

180

20-45

72

3

35

2100

CTB(N.S)-918

900*1800

148

165

190

25-55

90

4

28

2900

CTB(N.S)-924

900*2400

148

165

190

35-70

110

4

28

3500

CTB(N.S)-1018

1050*1800

148

165

190

40-75

120

5.5

22

4000

CTB(N.S)-1021

1050*2100

148

165

190

45-88

140

5.5

22

4500

CTB(N.S)-1021

1050*2100

160

240

280

45-88

140

5.5

22

4500

CTB(N.S)-1024

1050*2400

148

165

190

52-100

160

5.5

22

5000

CTB(N.S)-1024

1050*2400

160

240

280

52-100

160

5.5

22

5000

CTB(N.S)-1030

1050*3000

160

240

280

65-125

200

7.5

22

6200

CTB(N.S)-1218

1200*1800

148

165

190

47-90

140

5.5

19

5800

CTB(N.S)-1218

1200*1800

160

240

280

47-90

140

5.5

19

5800

CTB(N.S)-1224

1200*2400

148

165

190

82-120

192

7.5

19

6200

CTB(N.S)-1224

1200*2400

160

240

300

82-120

192

7.5

19

6200

CTB(N.S)-1230

1200*3000

148

165

190

80-150

240

7.5

19

7200

CTB(N.S)-1230

1200*3000

160

240

280

80-150

240

7.5

19

7200

CTB(N.S)-1530

1500*3000

180

240

300

90-170

270

11

14

8100

CTB(N.S)-1540

1500*4000

180

240

300

115-220

350

11

14

9300



The max magnetic strength we can get to 8000 gauss to 10000gauss with extruded system or NdFeB ring section, if you  want to have specific requireements, welcome contact us for comprehensive solution.
Application of Magnetic Separator
(1) For primary rough dressing and refused tails, increasing recovery rate and reducing the load of second-stage grinding.
(2) For concentration of ferromagnetic minerals, increasing ore grade and recovery rate.
(3) Used before high-magnetism separation to remove ferromagnetic minerals from the ore and prevent magnetic clogging.
(4) For recovery of heavy media at coal processing plants.
(5) short magnetic circuit.
(6) low magnetic flux leakage
(7) high magnetic intensity ,up to 8000gauss to 10000gauss.
(8) with disaggregating function for sticky and poor fluidity powders.
(9) wear resistance.
(10)simple structure to maintain.
(11)virgin magnet with high coercive force and high remanence.

Working Princle:
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged Into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
