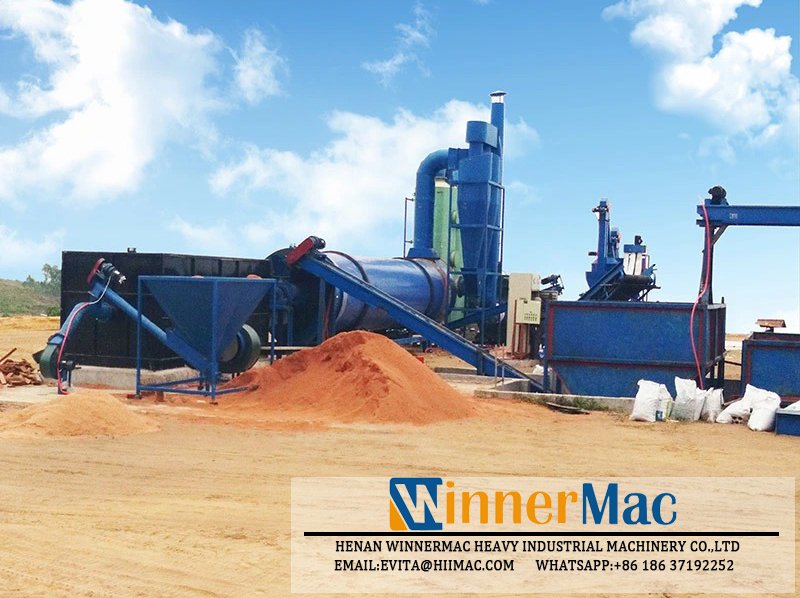

Chicken Manure Rotary Dryer

Chicken Manure Rotary Dryer

Chicken Manure Rotary Dryer suitable for drying material like chicken manure, cow dung, poultry manure, bean dregs, bagasse, cassava dregs, and other material.

The Chicken Manure Rotary Dryer is suitable for chicken manure, cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 50-85% moisture content of material Drying. All of our drying process technology according to the characteristics of each biomass material, the size of production, the application requirements, the cost control, the degree of automation, the site conditions, etc.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • Chicken Manure Rotary Dryer
  • Chicken Manure Rotary Dryer
  • Chicken Manure Rotary Dryer
  • Chicken Manure Rotary Dryer
Product Features of Chicken Manure Rotary Dryer

1.Smart control & One-step operation. The operation parameters are under automatic control to ensure the best running condition and moisture stability of dry materials.
2.Impurities self-removal. Iron dust and other impurities are cleaned and would not enter the following process.
3. The insulation effect of the drum is as high as 70% (35% for the traditional product), raising the heat efficiency by 30%.
4.Four-wheel drive, stable and reliable.
5. Save 50% space and civil investment compared to traditional dryers.
6.Innovative flight design. Efficient flight combinations would bring better process control, thermal distribution, and heat efficiency. The temperature of exhaust gas is lower than 50ºC.
7.Convenient variable frequency control systems. Customers could change the material flow rate and product moisture based on their needs.
8.Environmental and safe. Modular configuration of dust collection and purification systems.
9.More choice for innovative air furnace with high efficiency, convenient manipulation, and energy control, which could reduce 30% energy cost and 20% electric cost.

Chicken Manure Rotary Dryer Poultry Cow Horse Manure Drying Machine Specification:

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Model

1208

1408

1610

2010

2010/3

2210/3

2510/3

2512/3

Input Capacity(t/h)

1.82

2.18

3.15

3.81

4.76

5.51

6.33

7.60

Output Capacity(t/h)

1.07

1.28

1.85

2.24

2.80

3.24

3.72

4.47

Vaporization(t/h)

0.75

0.9

1.30

1.57

1.96

2.27

2.61

3.13

Early Moisture(%)

50±5%

Final Moisture(%)

15%(adjustable)

Drying Temperature(°C)

350±30℃

Total Power(KW)

32

40

55

95

95

100

125

145

Total Weight(T)

15

17

21.5

26.5

26.5

28.5

37

41

Plant Area(M)

5*15

5*15

6*16

8*18

8*20

8*20

10*20

10*22

Except above models, we also can supply special model according to your requirements.


Chicken Manure Rotary Dryer, also known as paddle agitated rotary drum dryer, rake roller dryer, rotary rake drum dryer, and rotary paddle drum dryer. The machine has kept the ordinary drum advantages of the dryer, it is custom-designed suit to the disadvantage of the moisture is more than 50% weak stick, sticking material drying, and the drum center "black hole" phenomenon lead to the unit area evaporation capacity is inefficiency and high fuel consumption, etc. Increasing the high-speed rotation of the blade, strengthen the material grinding and decentralized function, and fill the drum center "black hole". The material surface area fully expanded, to maximize heat transfer between the material and drying air. Because of the material particles to minimize and the heat transfer evaporation rate greatly improved. After a large area of production, practice proved that chicken manure dryer compares with ordinary drum dryer. The unit area of water evaporation capacity of 25-30kg water / m2 • h, which is 1-2 times the ordinary drum dryer. The output of the same size drying Machine increased by 50% or more, and fuel energy consumption reduced by more than 30% of the equipment's spatial footprint is smaller than 40%. The material moisture content dry more uniform, and more than 40% efficiency.


Chicken Manure Rotary Dryer is suitable for chicken manure, cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 50-85% moisture content of material Drying. All of our drying process technology according to the characteristics of each biomass material, the size of production, the application requirements, the cost control, the degree of automation, the site conditions, etc.


Working Principle

Material flow is 75-85% moisture content of the material fed into the special dehydration machine, the water removed to about 65% through the screw conveyor into the mixing drum dryer to downstream drying. Flights pick up material, carry it over, and shower it through the air stream as the drum rotates, promoting maximize the efficiency of heat transfer between the material and drying air. The rapid evaporation of water vaporization, to achieve the effect of drying materials in the hot air under the rapid flow of the drum. The rotary drum dryer gives the material a chance to dry before it hits the next flights, in order to prevent buildup near the wet material discharge. The drum cleaning device is installed inside of the drum to prevent the material sticking issue.

Air Stream Flow as Below:
The air through the air blower increases pressure into the hot air furnace to heating, when the temperature reached 600-850ºC, the hot air will be into the dryer to drying the wet material and evaporation water by inducing draft fan. Through three-layer heat transfer, the air temperature reduces to 55-65ºC and then discharge from the dryer. The dust and moisture are purified trough the cyclone dust collector and wet dust collector.
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.

Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.

After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
